Not Your Father's Calculus

Sometimes when my mom asks me what I'm working on, she'll chide me for the tears shed over rudimentary algebra in 4th or 5th grade, and I'm reminded why "the cool parts of math" weren't availed to me. In a previous post I laid some foundations for bastardizing calculus in ways that were unfathomable to my fragile, weak 10-year-old synapses that were philosophically frustrated by the notion of polynomial long division.

Consider the discrete summation of the triangular numbers:

and an arbitrary geometric series:

Both of these summations are convergent for finite $x$, so there exists closed formulae for each of them:

Interestingly, whereas the domain of the discrete summations is restricted to whole numbers, we can plug in any number into these formulae. In this post, we're going to ask and answer the question: does there exist a general formula by which we can we extend the domain of any arbitrary function like this?

(Spoiler, the answer is no in general, but for a broad class of functions, the answer can be yes). At the same time, we'll brush up against topics covered by the related literature on non-integer sums^1,2,3 courtesy of Markus Müller and Dierk Schleicher.

Given some univariate function $f(x)$, we want to extend the sum of $f(k)$ from $1$ to $x$, which is itself a function of $x$:

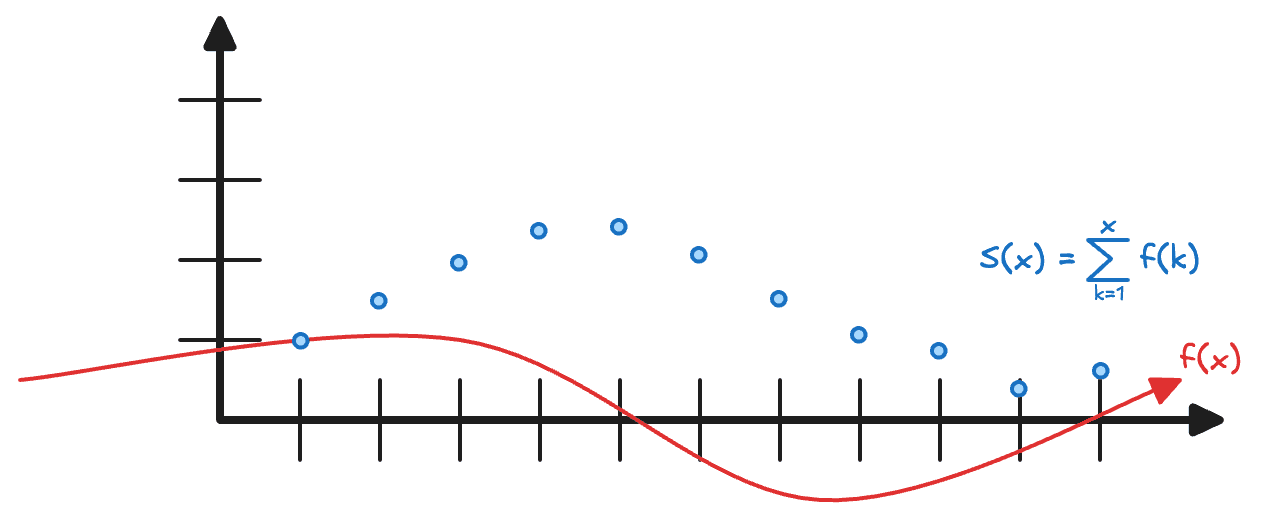

Since $x$ is whole, the plot of $S(x)$ is a discontinuous collection of points. Our goal, then, becomes trying to find a sane, natural, and generalizable way to connect these points. Now, there's no single correct answer. We could just draw straight lines between the dots,

but there are also plenty of better methods of smooth interpolation we could reach for

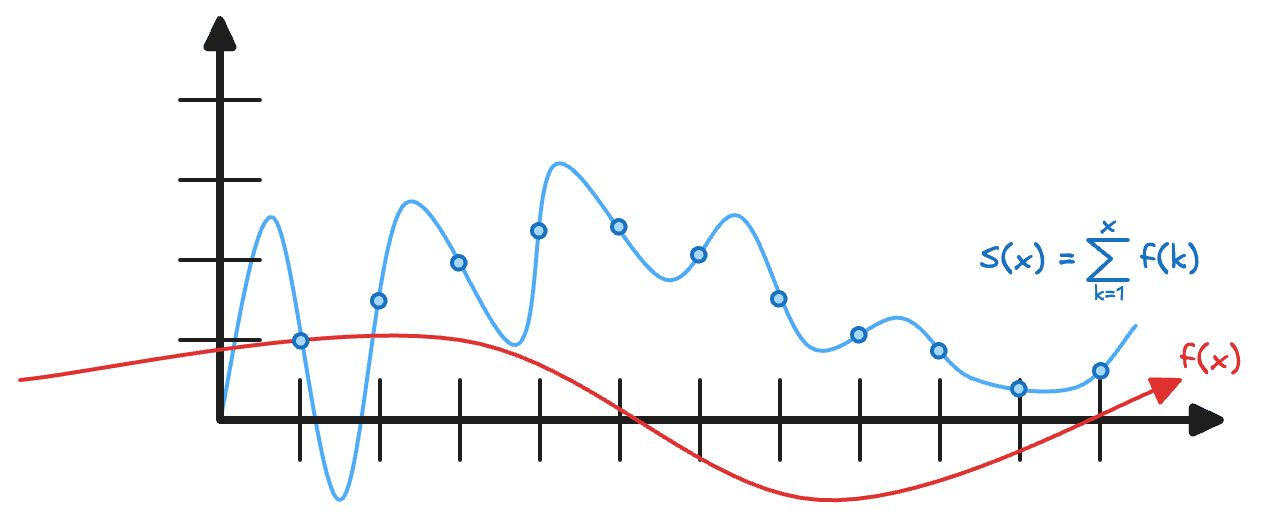

and cases can be made for any curve which passes through all the points...

To define the line of best fit, we'll restrict the solution space according to properties of $S(x)$ which we want our continuous approximation of $S$ to satisfy.

Property the first: recursion

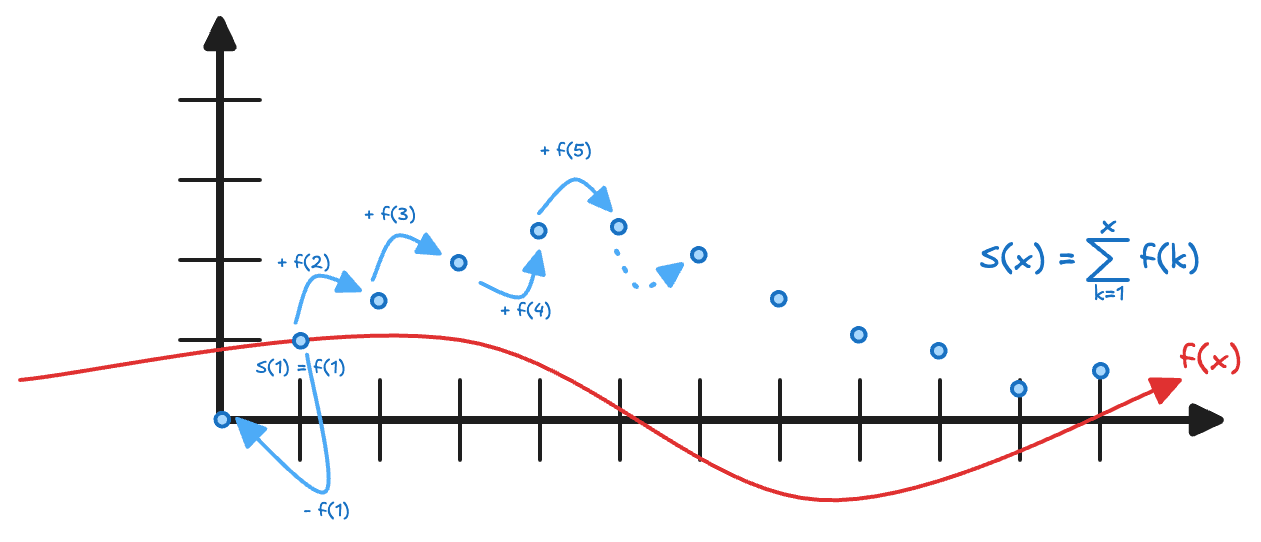

Thus, we observe first that $S$ is recursively defined:

so with no other information about $S$ other than $S(1) = f(1)$ and $f$, we can derive all other points of $S$.

This also works in reverse: given $S(x)$, we can compute $S(x-1) = S(x) - f(x)$, allowing us to compute $S(0)$ (which will always be zero), as well as $S(-1), S(-2), ...$

Noting that the recursive definition has already allowed us to breach containment of the strictly natural domain of our summation indices, we might then suppose that if we could just find some value $S(q)$ for $q \in \mathbb Q\backslash \mathbb Z$, we could fin all integer multiples of that point as well:

Property the second: the limit

Second, though we don't yet know how to extend $S$ near the origin, the asymptotic behavior off towards positive infinity is easier to work with. Just like the reciprocal function $f(x) = \frac{1}{x}$ whose origin behavior is finicky, we can more intuitively understand the tail behavior:

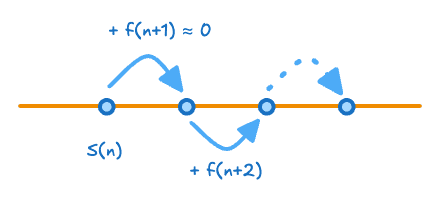

Asymptotically, the reciprocal function behaves like a horizontal line, so for $S(n)$ and some big, whole value of $n$, the amount that we add $f(n+1)$ in order to get $S(n+1)$ will be vanishingly small, so the points near $S(n)$ will be a horizontal line for our chosen function $f$:

Here in the limit where $S$ behaves like a constant, it would make sense to interpolate not-natural values of of $S(n)$ as a horizontal line.

However, the limit as our input to $S$ approaches infinity won't always converge to $0$. E.g., for $f(x) = \ln x$, though it doesn't approach zero, it's slope does decrease over time and it gradually starts to "flatten out" towards some constant. So here, the amount that we add near $S(n)$ for some arbitrarily large, whole value of $n$ become constant:

So, combining these two observations, how might we generalize to more than two hand-picked functions.

General Form for Asymptotically Zero Valued Functions

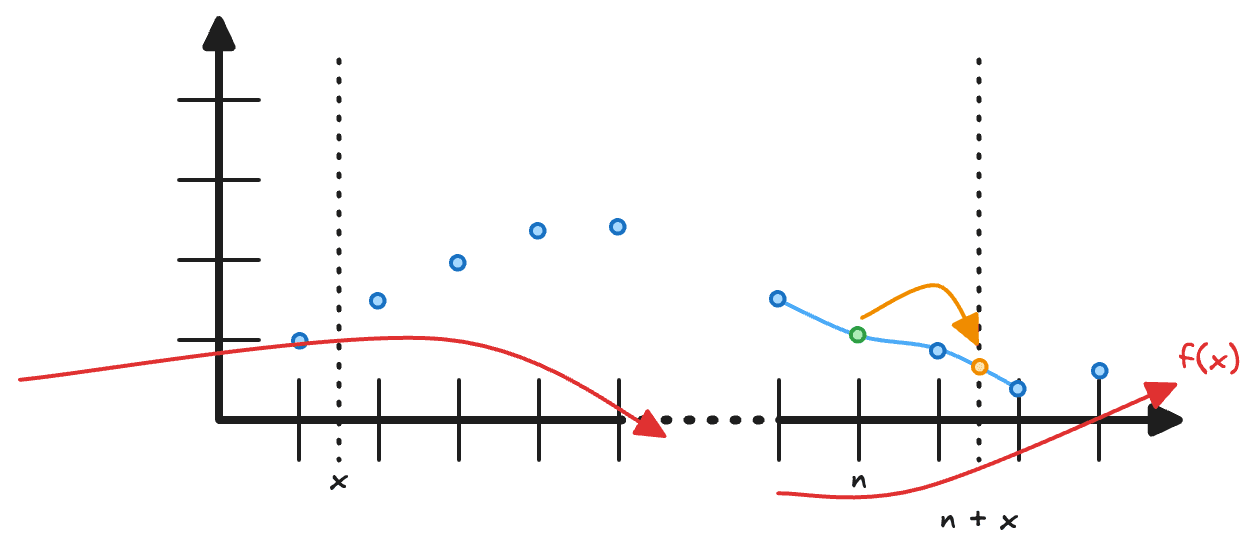

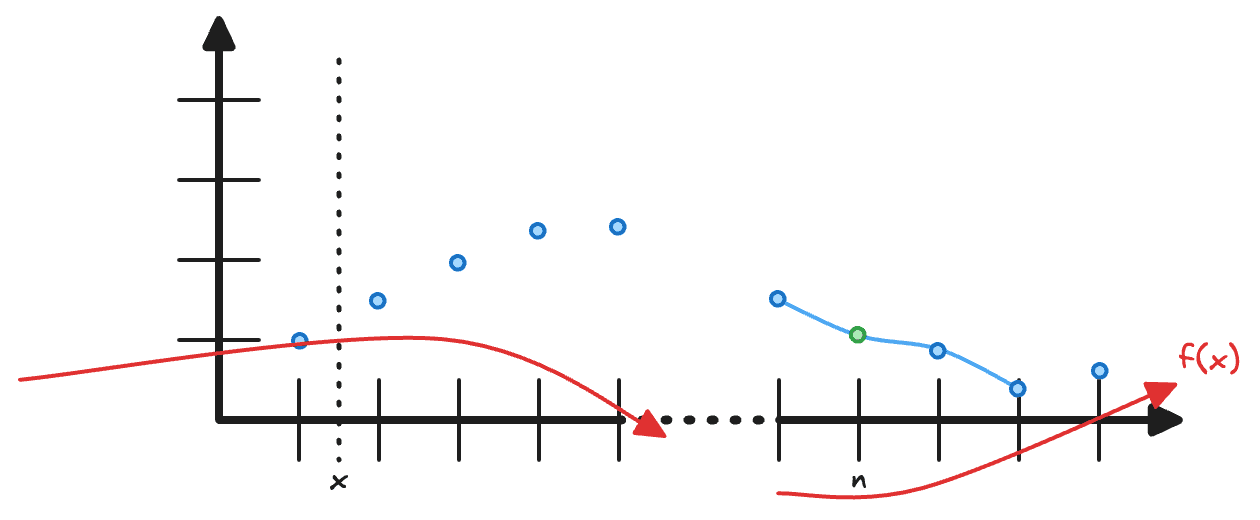

Suppose that $S$ can be extended in the vicinity of some $f$ at a large input $n$. In order to find $S(x)$ for $x \not\in \mathbb Z$, we perform a three step process:

1. Compute $S(n)$ where we have a sum extension and can move forward any amount,

2. Step forward $x$ units to compute $S(n+x)$

2. Step backwards $n$ units

For this to work, we have to be able to extend $S$ near $n$ which, so far, we've only established is possible for the log naturale and reciprocal functions. For now, to extract a general form of this process, let's assume that our step amount $x$ is an integer.

1. Computing $S(n)$ we get $S(n) = \sum_{k=1}^n f(k)$
2. Advancing $x$ units translates to the iterated application of the recursive formula: $+ f(n+1) + + f(n+2) + \cdots + f(n+x) = \sum_{k=1}^x f(n+k)$
3. And finally, moving backwards $n$ units: $-f(x+n) -f(x+n-1) - \cdots -f(x+2) -f(x+1) = -\sum_{k=1}^n f(x+k)$

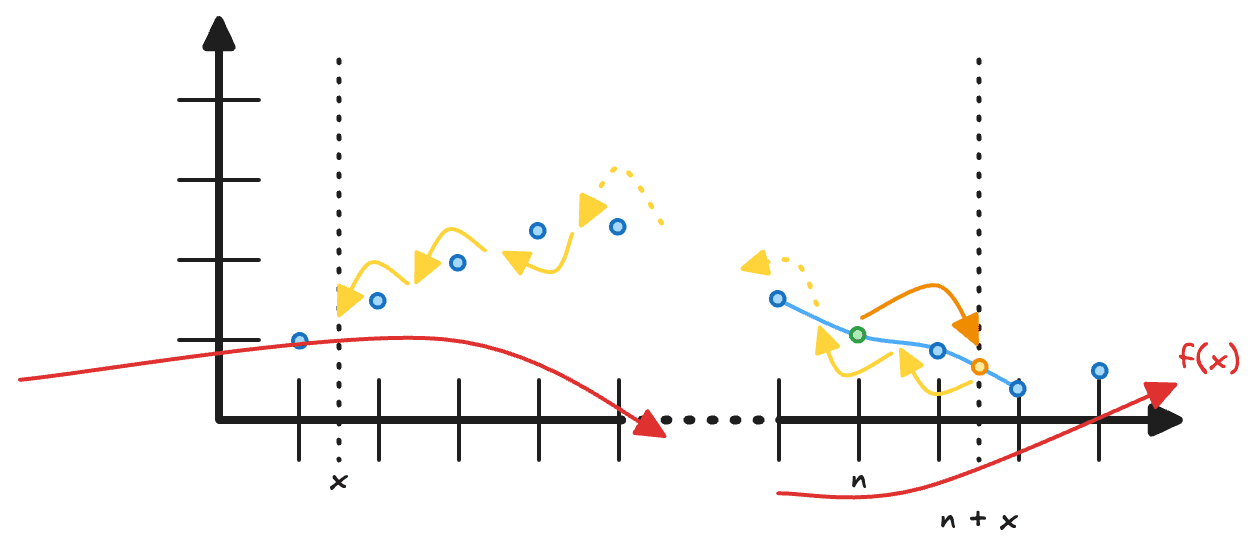

So, all together we get a new formula for $S(x)$:

Rearranging terms to group the first and third summations which share the same bounds:

And this formula will work for any whole-valued, arbitrarily big $n$, meaning we also need to take the infinite limit of this definition of $S$:

However, it still only works if $x$ is a whole number due to its usage as an upper bound in the second term. In this second term, though, we've offset the problem of fractional $x$ by $n$ in the limit, so hopefully we can infer a value from a well-bounded asymptotic approximation.

Let's see how this deferred evaluation of non-whole $x$ would work for some functions who's asymptotic behavior we understand.

Suppose that $f(x) = 0$ as $x$ tends towards infinity, since we're taking the limit of $f(n+k)$ sums as $n$ approaches infinity, it means that those terms will go to zero:

This implies that the whole summation tends towards zero since $x$ is finite and the summation of finitely many zero-valued terms vanishes in the limit, problem solved!

So we have

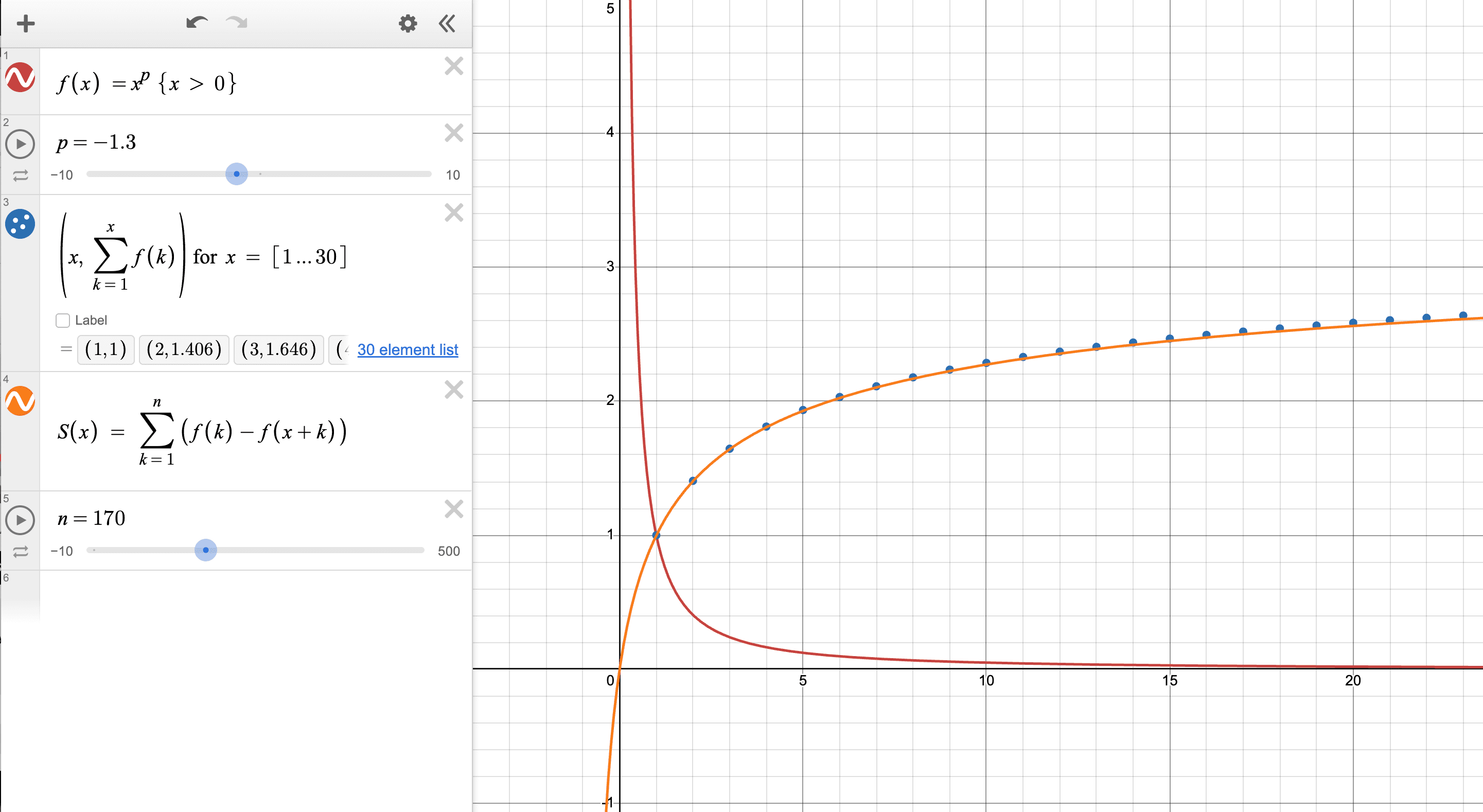

which will work for any underlying $f$ which tends towards zero for sufficiently large $n$, since we've removed the only part of the formula which relied on $x$ being an integer. And we can visualize this "for real" with some Desmos handiwork like so:

N.B. that this only works for $p < -1$ since the larger that $p$ is, the slower $x^p$ approaches zero, and thus we need to crank the $n$ slider to pump up the "limit", however even this doesn't work for positive values of $p$ since that function no longer converges on zero. So we need some way to account for that...

General Form for Asymptotically Constant Valued Functions

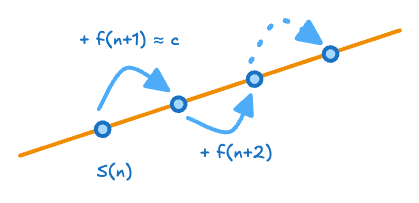

What about the case for functions which "flatten" out at some non-zero value, where $f(x) \rightarrow c$ as $x \rightarrow \infty$ ? What does it mean to converge on some constant $c$?

Revisiting the example of $\ln$, is there any constant value we can find which this function converges on? No, because $\ln$ will eventually grow past it, so we need something less restrictive.

We can say $S(x)$ flattens out if the limit of the underlying function $f(x)$ approaches zero, but since $S$ and $f$ are not explicitly related in this definition, we first need want leverage the backwards recursive definition of $S$:

So we can use the left hand side as our definition, claiming that $S(x)$ flattens out if

For simplicity/generality, we can write this as $f$ instead of $S$ since this holds for any function⁴ and note that

is called the forward difference of $f$ at $x$, and is familiarly denoted $\Delta f(x)$. So we can say that a function flattens out if:

Thus we recover a discrete version of the fundamental theorem of calculus:

This discrete derivation can be thought of as the amount of change after taking one step to the right:

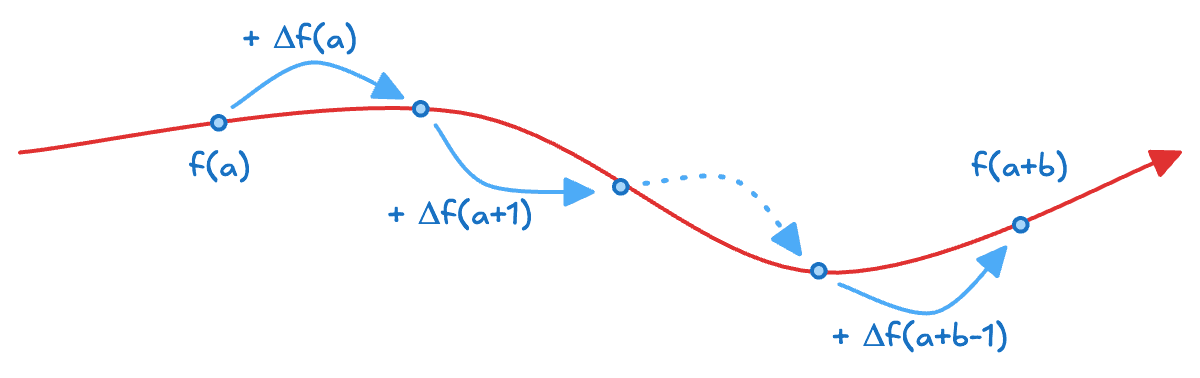

And note that this is also recursive. That is, if we have some value $f(a)$, and we want to compute $f(a+b)$, we simply add forward differences up to $\Delta f(a + b - 1)$ :

And this whole process can be expressed as a sum of forward differences:

So, for some $f$ who's forward difference converges to zero

and who's term inside the problematic summation bounded by $x$ does not itself converge, but who's forward difference does:

We now use the forward difference formula in terms of $f(a +b)$ after some slight manipulation to reindex its summation, and plug in $a=n, b=\color{red}k\color{black}$:

And since this sinistral term as it appears in $S$ is within a sum, we'll introduce the same sum to both side of our working forward difference equation:

And now we can substitute the right hand side back into our equation for $S$:

And note as the use of subscripts on $k$ rather than color coding. So what we've done is replace the problematic, non-vanishing term from earlier with a double sum of forward differences – and since the forward difference approaches zero in the limit AND since the double summation sums finitely many terms, neither of which are bounded by $n \rightarrow \infty$, this term also goes to zero.

Get vanished, bozo! so we can actually drop the whole double-sum term, leaving us with just a singular summation of $f(n)$ which we can express as $xf(n)$, and not it doesn't matter whether or not $x$ is wholly valued or not:

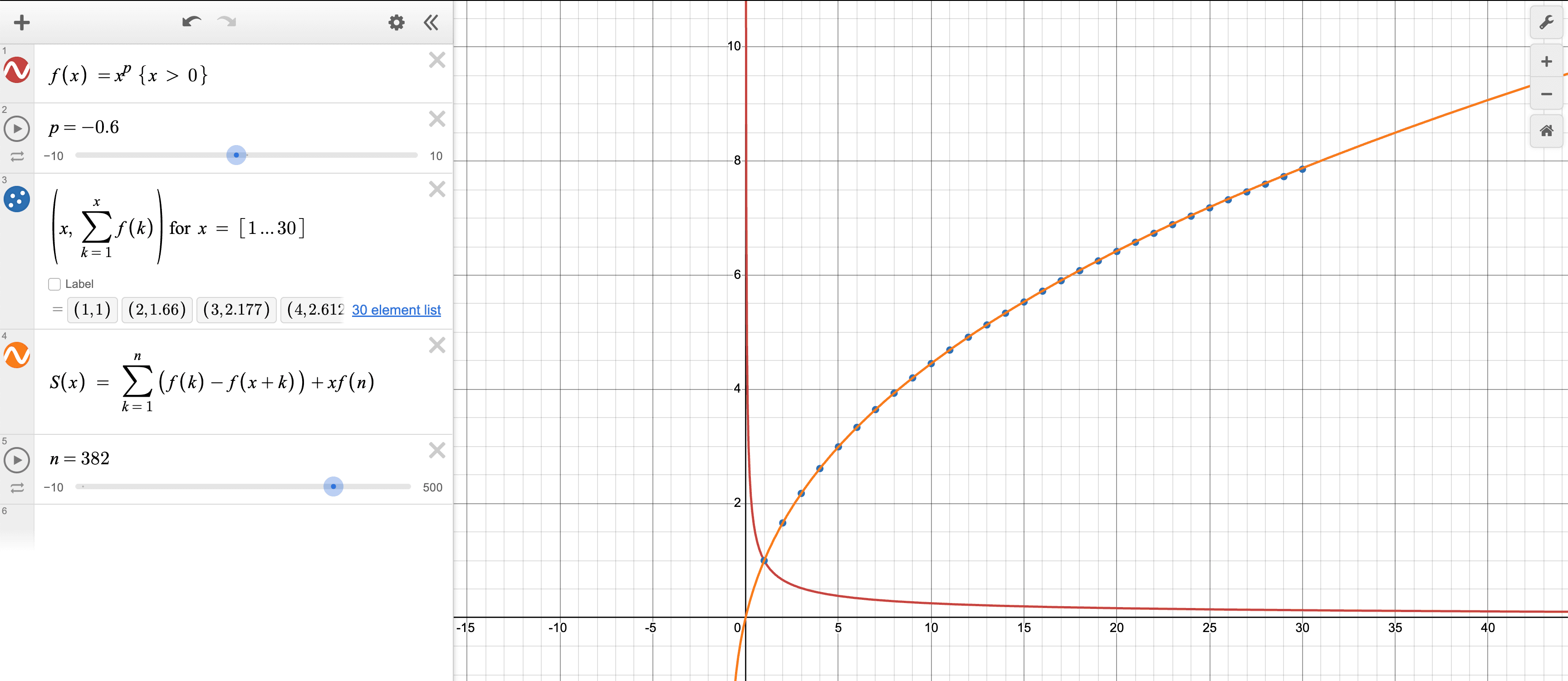

We can see this formulation in action in Desmos again, where all we have to do is add this new $xf(n)$ term to our definition of $S$, without which we would've needed $n$ to be on the order of millions instead of hundreds to resemble a half-decent approximation even at this scale:

Once again, though, this fails to be a faithful approximation for any $n$ if $p>1$ because $f(x)$ no longer flattens out.

Reviewing what we've accomplished so far, we can brainstorm how we might extend the sum of functions parameterized by $p > 1$.

For the first class of summations, it was sufficient if $f(x)$ converged to zero as does $f(x) = 1/x$:

For the second class, it was sufficient if the forward difference converged to zero, meaning that the function flattened out at some point:

So what if we iterate the forward difference, defined the way we'd expect it to be, where

And to generalize for any polynomial growth function,

to apply this to our formula for $S$, we'll first make some notational tweaks for readability. First, we'll reindex $n \rightarrow n-1$ which is arbitrary in the limit:

s.t.

For this derivation, let's take for example a function who's first and second forward differences do not converge to zero, but who's third order forward difference does:

to demonstrate how this form works in general for all polynomials.

and for values of $a=n, b=k_1$ as is the case for the last term in the $S(x)$ definition, we get:

And just like before, we introduce an additional sum on both sides so that our forward difference here matches the term in the definition of $S$:

And now we can substitute the resultant term back into our definition of $S$,

and this time –since the first order forward difference $\Delta^1$ doesn't necessarily converge to zero, we can't disappear it. Instead, we repeat this process for $\Delta^1 f(n + k_2)$, starting with the first order forward difference formula:

And this time we have to introduce the double sum over $k_1,k_2$ to get this equation to match:

And now we can substitute this back in for the problematic term in $S$:

and repeat once more for the vanishing third order forward difference:

and finally this is the summation of a term that goes to zero, so therefore so too will the quadruple sum of this term since, again, we're only summing finitely many terms bounded by $x$, which cascades down the summation stack, so we can drop this whole quadruple sum too:

Is this actually useful though? Our resultant expression contains several nested, dependent sums which all still rely on $x$ being a whole number... To make this expression tractable for non-whole $x$, we can observe that the terms we're summing over aren't dependent on $f$ or $n$, so they're constant relative to the sum, so we can factor them out:

So now we have a bunch of nested sums of $1$ which might look familiar to students of combinatorics. Consider just the triply-nested sum:

and now consider what happens to the innermost sum when the bound of the enveloping summation, $k_2$, is 0:

which is a no op since the lower bound of $0$ is initialized to a value greater than the upper bound! So we can skip the step when $k_2$ is 0 and just start at $k_2 = 1$:

Similarly, we can look at the middle summation when $k_1 =0,1$ and notice that no summing happens till $k_1 \geq 2$, so we can skip those indices and initialize $k_1$ to $2$:

So, in this way, while the index of the variable in our upper bound increases, so to does the the initial value of the lower bound. To understand this programmatically, what we have here is a triply-nested loop where $k_3 < k_2 < k_1$:

x = 10
total = 0
for k1 in range(2, x):
	for k2 in range(1, k1):
		for k3 in range(0, k2):
			total += 1
# total = 120

If we were to visualize this, we'd see how each of our loop indices effectively enumerates each way to choose 3 elements from $x=10$, which we can express mathematically as $x \choose 3$ . So, our nested summation is equivalent to the binomial coefficients parameterized by $n = x$, where $k$ is the number of summations:

where the binomial coefficientformula is derived from:

e.g. for $x \choose 3$, initially we have $x$ items to choose from, then we have $x-1$ items to choose from, and then $x-2$, but if order doesn't matter for our combination (it doesn't) then we've over counted and have to divide by the number of orders we could've selected one from $x$, from $x-1$, and then from $x-2$ which is $3!$:

which does not require $x \in \mathbb Z$! So returning to our definition of $S$, we can replace each of the summations with the binomial coefficients they correspond to:

and this we can generalize for the $m$th forward difference:

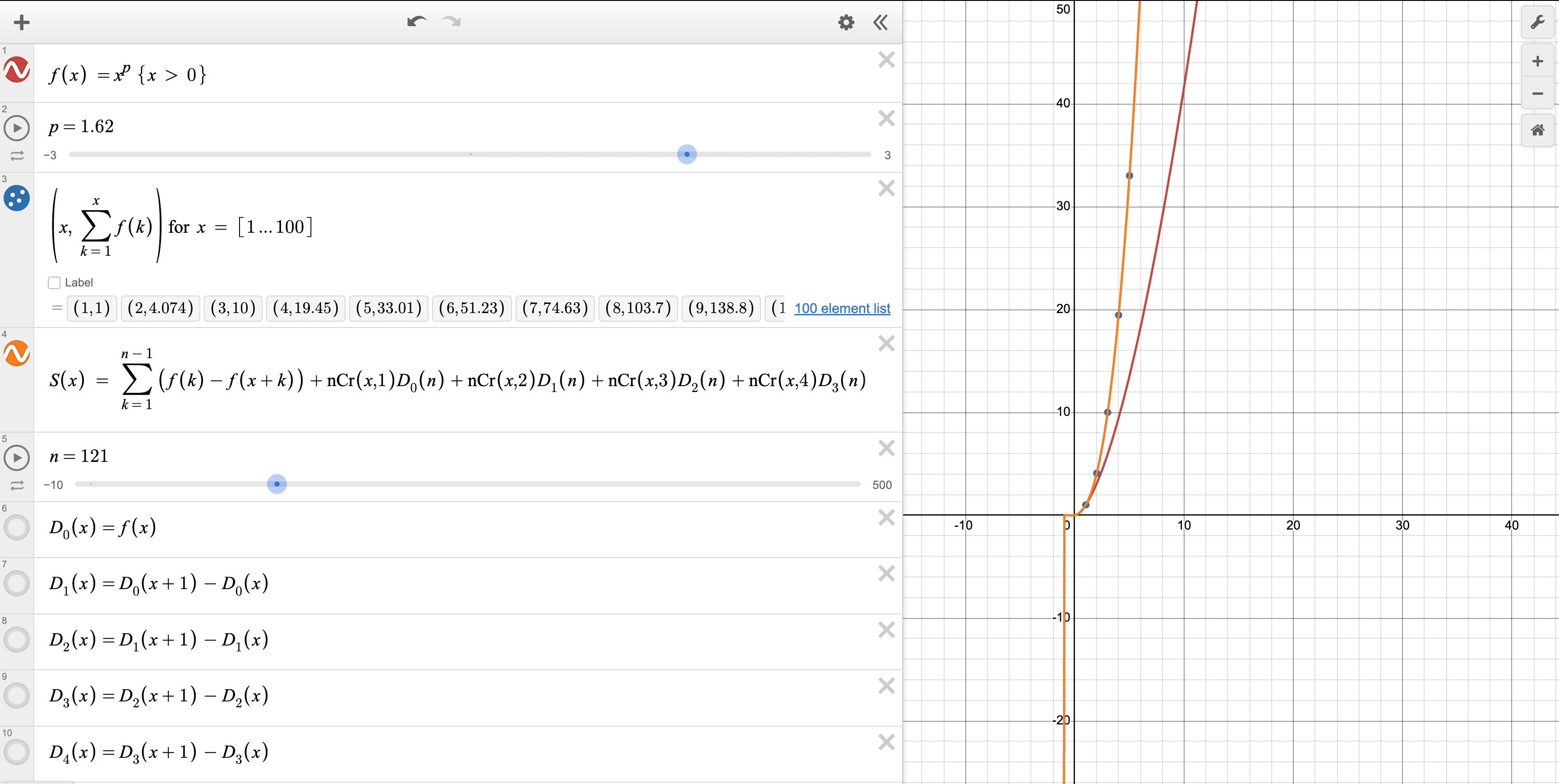

And this works for any $f$ with a polynomial growth rate (i.e. an $f$ for which the $m$th forward differences converges to zero). This means we can extend summation for these functions to fractional, irrational, and even complex terms, provide that the limit of the $m$th forward difference does actually converge, as does the limit of the summation itself (e.g. summation over 1-periodic functions will not converge womp womp).
